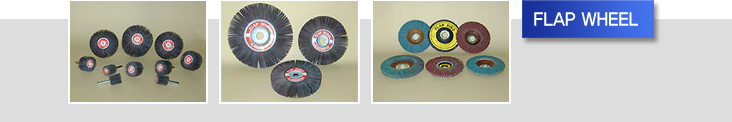

Home > PRODUCTS > Flap wheel |
| |
 |
| |
 |
|
| <Specifications> |
|
D(mm) |
T(mm) |
Max RPM |
25 |
|
30,000 |
30 |
|
30,000 |
40 |
|
30,000 |
50 |
|
25,000 |
60 |
|
25,000 |
75 |
|
20,000 |
80 |
|
20,000 |
|
|
|
Available Grit Range : 40-400
Shaft size : 6mm(1/4") |
| |
 |
|
| <Specifications> |
|
Diamcter(inch) |
Face width(inch) |
Max RPM |
04 |
1, 1.1/2&2 |
13,000 |
05 |
1, 1.1/2&2 |
11,000 |
06 |
1, 1.1/2&2 |
06,000 |
08 |
1, 1.1/2&2 |
04,500 |
10 |
1, 1.1/2&2 |
04,000 |
12 |
1, 1.1/2&2 |
04,000 |
|
|
|
Available Grit Range : 40-400 |
| |
 |
|
| <Specifications> |
|
Diameter
mm(inch) |
Hole size
mm(inch) |
Max RPM |
100(4")0. |
16(5/8") |
15,500 |
115(4.5") |
22(7/8") |
13,500 |
125(5")0. |
22(7/8") |
12,000 |
180(7")0. |
22(7/8") |
09,500 |
|
|
|
Regular Aluminium Oxide for general purpose on ferrous metals.
Zirconium for stainless, plastics and non-ferrous metals.
Available Grit Range : 40-400
T-27 & T-29 both available |
| |
|
|
|
