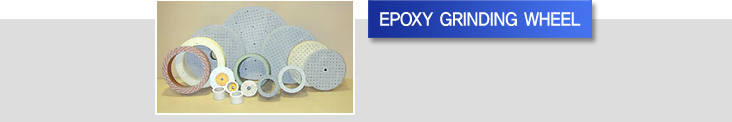

Home > PRODUCTS > EPOXY grinding wheel


<Type 1>

D

T

H

125

13

16

19



012.70

015.88

019.05

025.40

31.75

150

13

16

19



012.70

015.88

019.05

025.40

31.75

180

13

16

19



015.88

019.05

025.40

031.75



205

13

16

25

38

015.88

019.05

025.40

031.75



255

13

16

25

38

019.05

025.40

031.75

038.10



305

13

25

32

50

025.40

031.75

038.10

050.80



355

25

32

38



025.40

031.75

038.10

050.80



405

32

38

50

75

031.75

038.10

044.45

050.80



455

32

38

50

75

038.10

044.50

050.80

152.40



510

38

50

65



050.80

152.40

203.20





610

50

65

75



152.40

203.20

304.80





760

50

65

75



152.40

203.20

304.80

<DISC Gringding Wheel>

D

T

H

Through Feed

Rotary Carrier

305

50

65

75

0.19

075

125





355

50

65

75

0.19

150







380

50

65

75

0.19

150







405

50

65

75

0.19

150

205





455

50

65

75



0.19

150

205

255



510

50

65

75

90

0.19

150

205

255



585

50

65

75

90

0.19

150

255

305



610

50

65

75

90

0.19

150

255

305



660

50

65

75

90

0.19

150

255

305



760

50

65

75

90

0.19

150

255

305

405


Workpieces

Materials

Specifications

  Bearing Ring

  SUJ2 : DISK TYPE



19A 46 M 10 EP - 5
WA 46 M 10 EP -5

  Gasket Plate

  SPC, SHPC, -S10C : DISK TYPE



WA 46 K 10 EP -6
WA 46 I 11 EP -6

  Coil Spring

  SPRING Steel
  Stainless Steel
  (∮15㎜~∮2㎜)



19A 16 J 7 EP -6(610×75×100)
WA 20 K 8 EP -6(330×7×100)
19A 24 K 8 EP -6(400×70×130)

  Wrench

  SC, FCMB, SCM, SCr



WA 46 M 10 EP -6
19A 46 M 10 EP -6
WA 60 I 10 EP -6

  Knife

  SUS410, SC, SK, SKH



19A 80 L 10 EP -7
WA 120 K 10 EP -7
WA 100 L 10 EP -7
(660×52×305)

  Connecting - rod

  S43C-S45C



WA 46 J 10 EP -6
WA 54 J 10 EP -6
(585×75×150)
(760×75×150)
