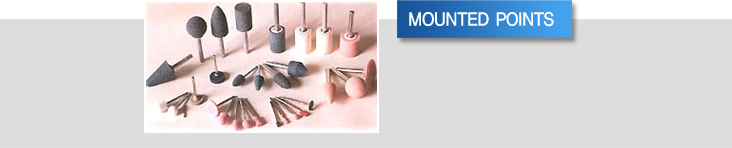

Home > PRODUCTS > Mounted points


NO Shapes S.T S.C NO Shapes S.T S.C NO Shapes S.T S.C
A1 20x63 PA60P5V A26 Ø16 PA60P5V B52 10x20 PA60P5V
A3 25x70 PA46P5V A31 35x25 PA46P5V B53 8x16 PA80P5V
A4 32x32 PA46P5V A32 25x16 PA60P5V B61 20x8 PA60P5V
A5 20x29 PA60P5V A34 38x10 PA60P5V B96 3x6 PA80P5V
A11 22x50 PA60P5V A35 25x10 PA60P5V B101 16x18 PA60P5V
A12 18x32 PA60P5V A36 40x10 PA60P5V B103 16x5 PA60P5V
A13 32x32 PA60P5V A37 32x6 PA60P5V B104 8x10 PA60P5V
A14 18x22 PA60P5V A38 25x25 PA60P5V B121 Ø13 PA60P5V
A15 6x27 PA80P5V A39 20x20 PA60P5V B123 Ø10 PA60P5V
A21 25x25 PA60P5V A41 16x16 PA60P5V B123 Ø5 PA80O5V
A23 20x25 PA60P5V A42 13x20 PA60P5V B124 Ø3 PA80O5V
A24 6x20 PA60P5V A43 6x8 PA60P5V B132 10x13 PA60P5V
A25 Ø25
 PA60P5V A44 6x10 PA60P5V B135 6x13 PA80O5V

*  S.T : Standard Size(DxT)
*  S.C : Specification

NO S.T S.C NO S.T S.C NO S.T S.C
W144 3x6 PA80O5V W184 13x10 PA60P5V W215 25x3 PA80P5V
W145 3x9 PA80O5V W185 13x13 PA60P5V W216 25x6 PA60P5V
W152 5x6 PA60P5V W186 13x20 PA60P5V W217 25x10 PA60P5V
W153 5x10 PA60P5V W187 13x25 PA60P5V W218 25x13 PA60P5V
W158 5x3 PA80O5V W188 13x40 PA60P5V W220 25x25 PA46P5V
W160 6x6 PA60P5V W189 13x50 PA60P5V W221 25x40 PA46P5V
W162 6x10 PA60P5V W195 16x20 PA60P5V W222 25x50 PA46P5V
W163 6x13 PA60P5V W196 16x25 PA60P5V W225 32x6 PA60P5V
W164 6x20 PA60P5V W197 16x50 PA60P5V W226 32x10 PA60P5V
W174 10x6 PA60P5V W200 20x3 PA80O5V W228 32x20 PA46P5V
W175 10x10 PA60P5V W201 20x6 PA60P5V W230 32x32 PA46P5V
W176 10x13 PA60P5V W202 20x10 PA60P5V W232 32x50 PA46P5V
W177 10x20 PA60P5V W203 20x13 PA60P5V W235 40x6 PA60P5V
W178 10x25 PA60P5V W204 20x20 PA60P5V W236 40x13 PA60P5V
W179 10x32 PA60P5V W205 20x25 PA60P5V W237 40x25 PA46P5V
W182 13x3 PA80O5V W207 20x40 PA60P5V W238 40x40 PA46P5V
W183 13x6 PA60P5V W208 20x50 PA60P5V W242
 50x25 PA46P5V

*  S.T : Standard Size(DxT)
*  S.C : Specification
